Become energy-aware
Electricity Meter Interface 2, LED
Imagine having a frient who’s always mindful of your energy consumption. Someone who has a deeper connection with your electricity meter and who helps you become more conscious of your consumption by giving you the facts straight. A frient who wants to help you reduce your consumption, save money, and help the grid.
Now that’s a frient!
Cut down your electricity costs

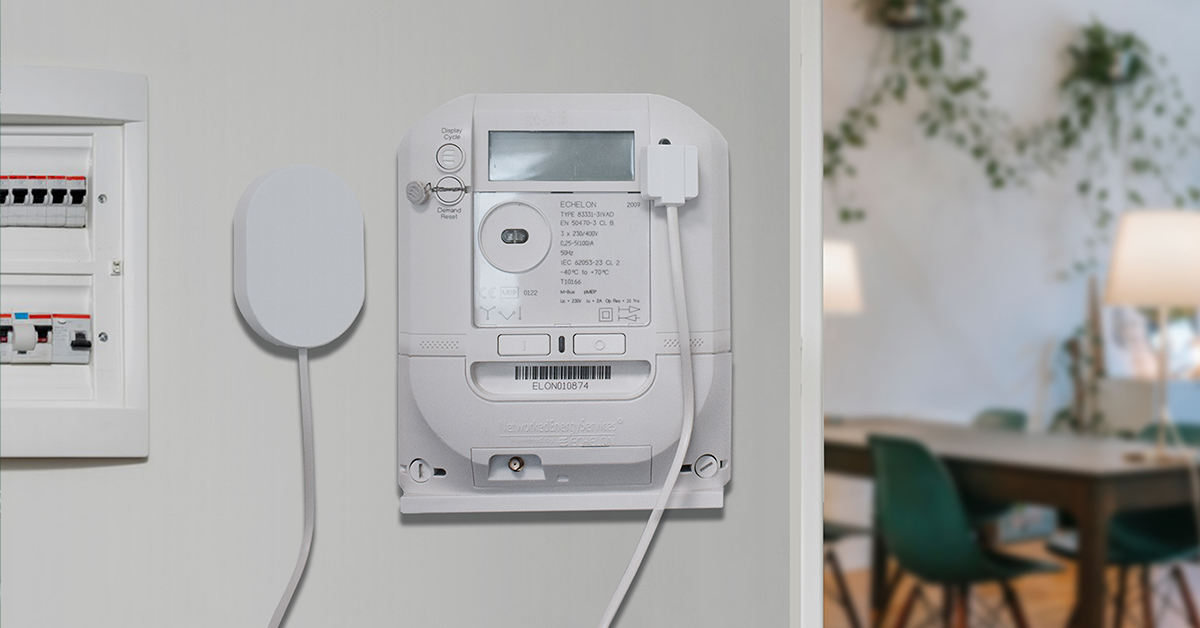

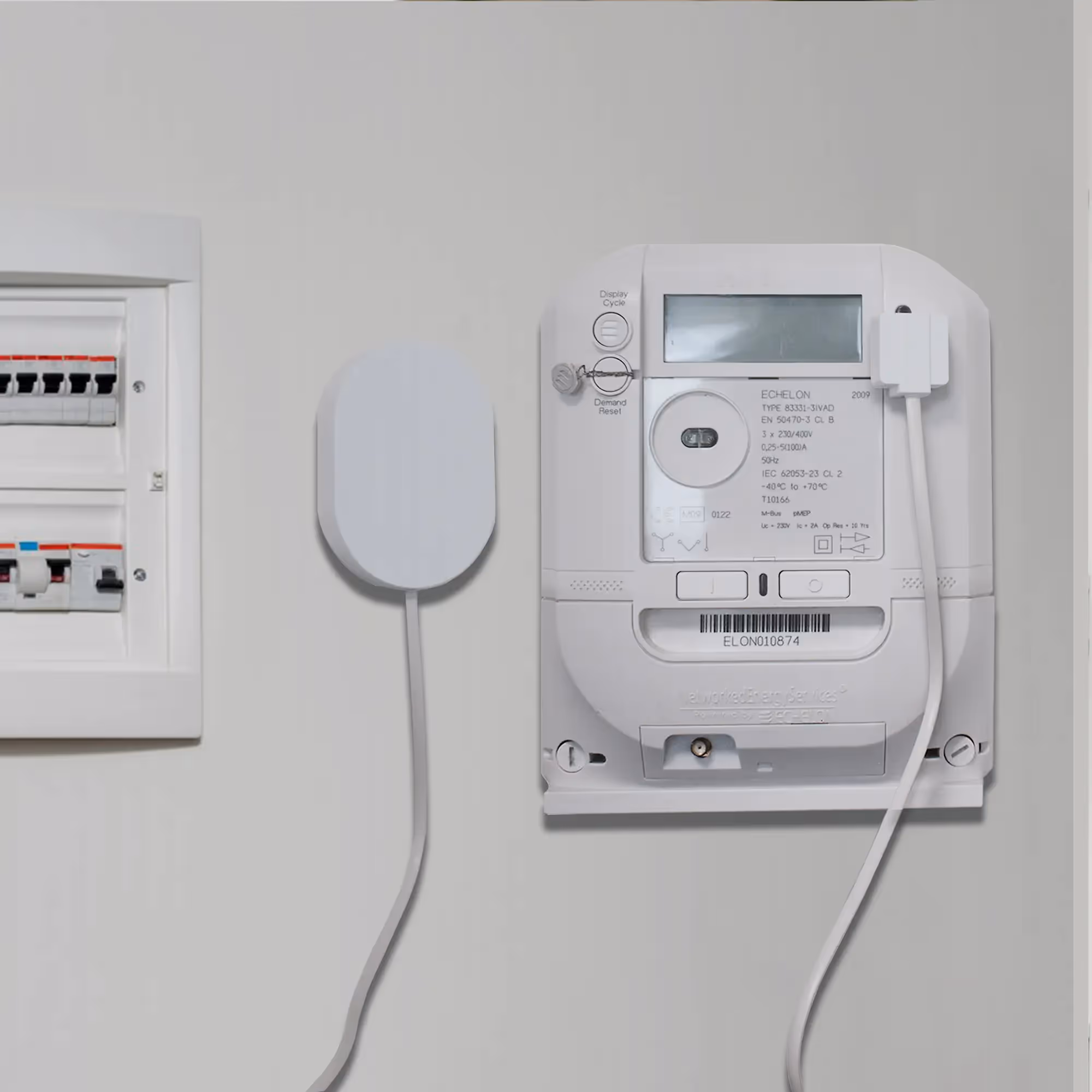

Attach the friently Electricity Meter Interface 2 to your electricity meter, and it will communicate with you wirelessly through a compatible hub. You don't need to rely on a professional to install it – you can easily set it up yourself.
So, say goodbye to the anxiety of high electricity bills. With the remote meter readings from your frient, you can identify your peak consumption periods and start lowering them.
That's what frients are for
Informing you about electricity consumption
Working with electronic meters with LED indicating power consumption
Easy installation
A friently hand to the grid
Electricity grids face enormous strain during peak consumption periods. When people return home from work and simultaneously switch on the heating, charge their electric vehicles, cook dinner, and run the washing machine, the grid becomes heavily burdened.
With the Electricity Meter Interface 2, you can lend a friently hand to the grid by identifying your consumption peaks and move your usage to off-peak periods.
Frients with...
*Not all features supported by all hubs.
**To make the Electricity Meter Interface 2, LED work with SmartThings, you need to install SmartThings Edge drivers. You can download them here.
Specifications
Communication protocol: Zigbee
Battery: 2 x AA, exchangeable
Battery life: 2 years, updating every 5 seconds, at room temperature
IP class: IP22
Operation temperature: -20 to +60°C
Color: White
Dimensions: 95 x 65 x 22,3 mm
See all specifications
General
- Dimensions: 95 x 65 x 22,3 mm
- Color: White
Power supply
- Battery: 2 x AA alkaline batteries, exchangeable
- Battery life: 2 years, updating every 5 seconds, at room temperature
RF Performance
- Sensitivity: -100 dBm
- Output power: +10 dBm
Environment
- Operation temperature: -20 to +60°C
- IP class: IP22
- Relative humidity 5% - 85%, non condensing
Specifications meter reading
- By LED probe
Interfaces
- Supports LED pulses (configurable pulse range from 50 to 10.000 pulses per kWh)
Communications
- Wireless protocol: Zigbee 3.0
Certifications
- Conforming to CE, FCC, IC, ISED, RED and RoHS directives
- Zigbee 3.0 certified
Get started with your new frient
Go to the installation manual here.
Or scan the QR code with your phone:
