Become energy-aware
Electricity Meter Interface 2, P1
Imagine having a frient you can always ask about your power usage and who will always give you a precise answer. Someone who clicks with your electricity meter and is there to help you become more energy-aware. A frient who wants to help you reduce your consumption, save money, and help the environment.
Now that’s a frient!
Reduce your electricity costs

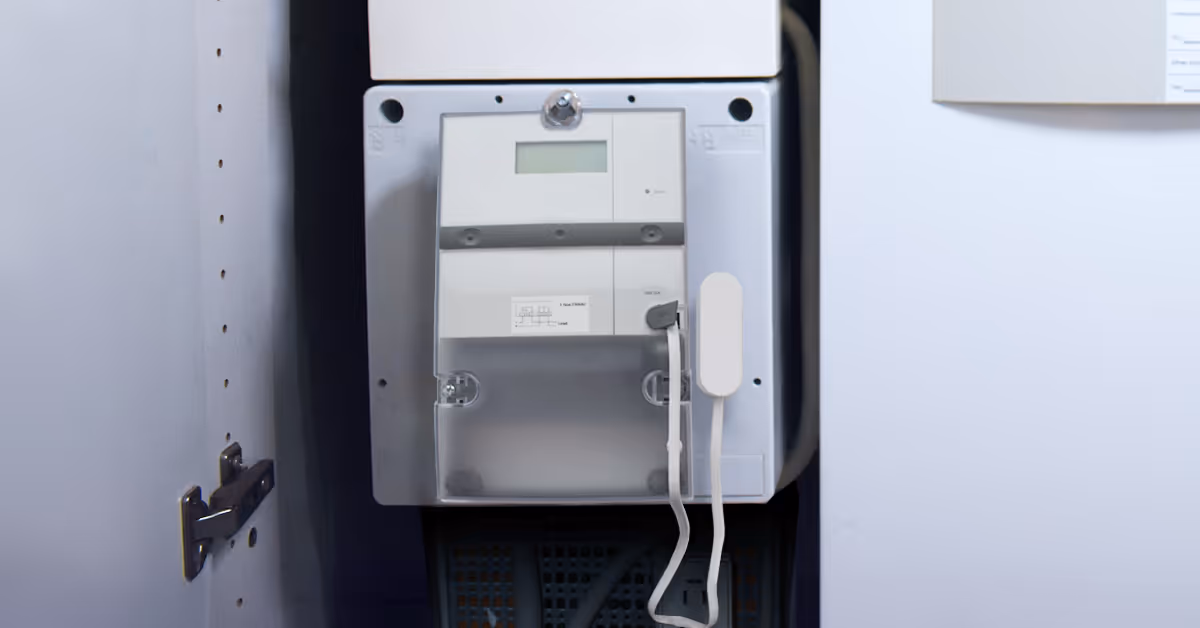

Mounted by your electricity meter with an enabled P1 port, the Electricity Meter Interface 2 P1 will track your consumption and via a compatible hub give you the facts straight. This way, you can become energy-aware, move your power usage to off-peak hours, and start lowering your consumption and electricity bill.
You don’t need professional help to install this power tracking frient – you can easily do it yourself.
That's what frients are for
Informing you about your electricity consumption
Working with meters that have an enabled P1 port*
*Consult your meter's manual or your electricity provider if you are in doubt
Easy installation
Shift your power load and help the grid
In peak consumption periods, such as when people come home from work and start using their electrical appliances to prepare dinner or charge their electric car, the electricity grid is under massive stress.
With the Electricity Meter Interface 2 P1, you can help the grid by identifying your consumption peaks and move your usage to off-peak hours.
Frients with...
*Not all features supported by all hubs.
**To make the Electricity Meter Interface 2, P1 work with SmartThings, you need to install SmartThings Edge drivers. You can download them here.
Compatible meters
The Electricity Meter Interface 2, P1 works with most modern electricity meters but there might be local specifications to be aware of.
Find a list of common electricity meters that we have successfully tested the Electricity Meter Interface 2, P1 with below.
Please note that the device might also work with meters not mentioned here.
Specifications
Communication protocol: Zigbee
Power supply: Supplied by the P1 interface (5V)
IP class: IP2X
Operation temperature: 0 to +50°C
Color: White
Dimensions: 30 x 90 x 18 mm
See all specifications
General
- Dimensions: 30 x 90 x 18 mm
- Color: White
Power supply
- Supplied by the P1 interface (5V)
RF Performance
- Sensitivity: -100 dBm @ 1% PER
- Output power: +10 dBm
Environment
- Operation temperature: 0 to +50°C
- IP class: IP2X
- Relative humidity 5% - 85%, non condensing
Specifications meter reading
- Connecting electricity meters via included RJ12 connector
Communications
- Wireless protocol: Zigbee 3.0
- P1 interface: DSMR 4.2, 5.0.2
Certifications
- Conforming to CE, RED, Low Voltage, and RoHS directives
- Zigbee 3.0 certified
Get started with your new frient
Go to the installation manual here.
Or scan the QR code with your phone:
