This frient is no longer being produced.

Instead, check out its successors below!

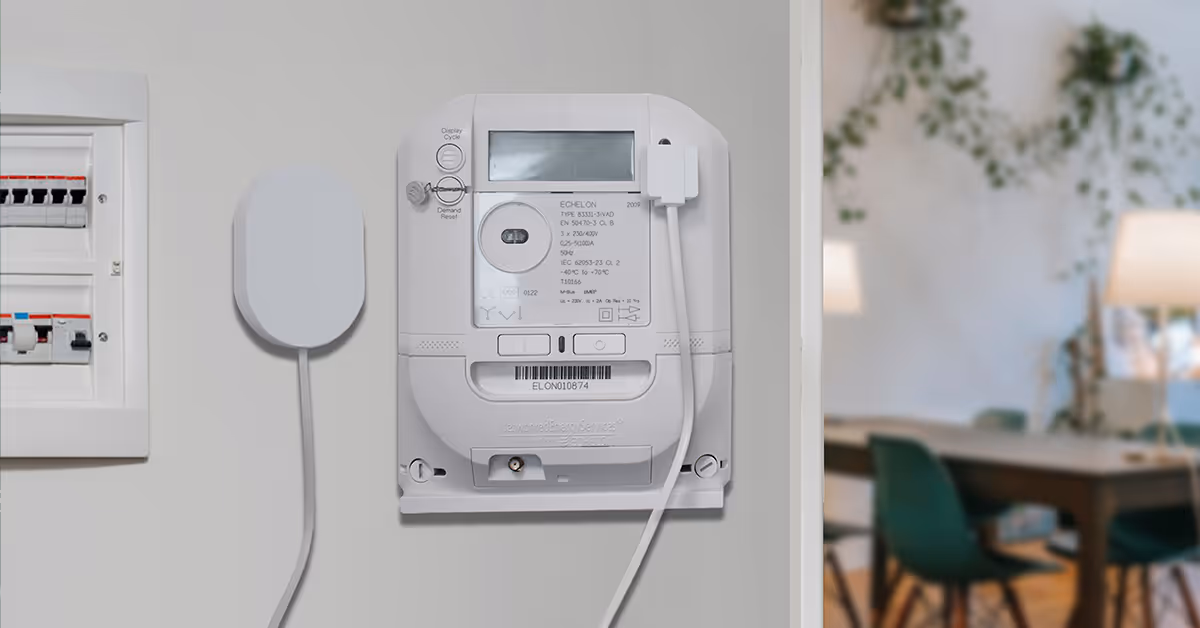

Electricity Meter Interface 2, LED

Electricity Meter Interface 2, P1

Best wireless electricity meter

Become energy-aware

Electricity Meter Interface

Imagine always having a frient keeping track of your electricity consumption. You know, someone who can connect you with your meter on another level and make you more energy-aware. Someone who wants to help you lower your consumption and save money.

Now that’s a frient!

Lower your electricity bill

Mount the friently Electricity Meter Interface on your electricity meter, and it starts communicating with you wirelessly via a compatible hub. You don’t need professional help to install it. You can just do it by yourself. How easy is that?

Now, you can stop fearing your electricity bill. With the remote meter readings from your frient, you can identify when your consumption peaks and start lowering it.

Zigbee energy meter to reduce electricity bill

That's what frients are for

smart meter reader

Informing you about electricity consumption

best electricity metering uk

Working with meters that have a blinking LED light*

*Pulse rate according with European Standard of 1000 pulse/kWh

installing a smart meter

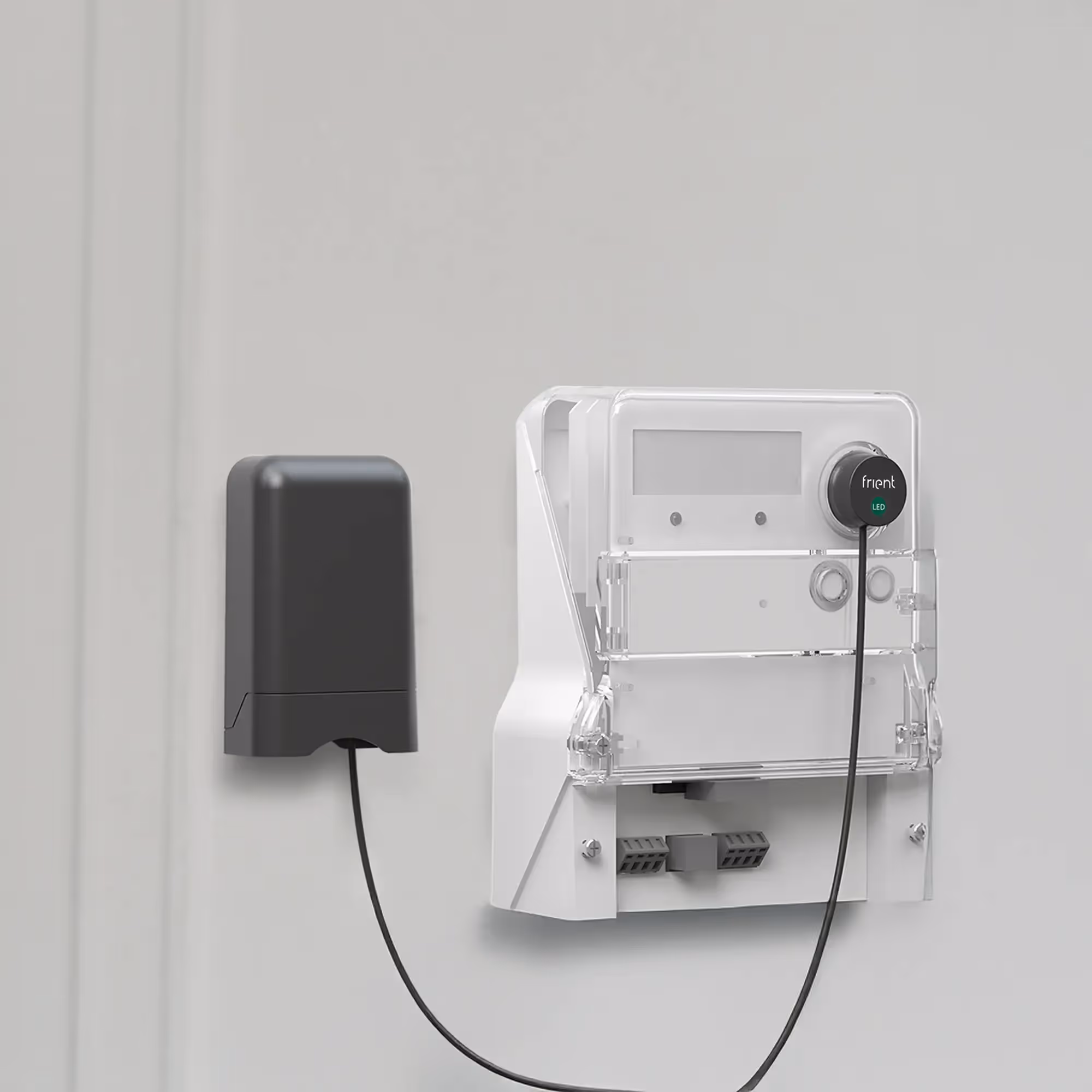

Easy installation

Help the grid

Electricity grids are massively strained by peaks in consumption during certain periods. When people come home from work and turn on the heat, charge their electric car, and start preparing dinner while turning on the washing machine to do laundry before bedtime, the grid is heavily loaded.

With the Electricity Meter Interface, you can help the grid; identify your peaks, and move your consumption to off-peak periods.

Wanna be frients?

How to use smart meter?

Frients with...

*Not all features supported by all hubs.

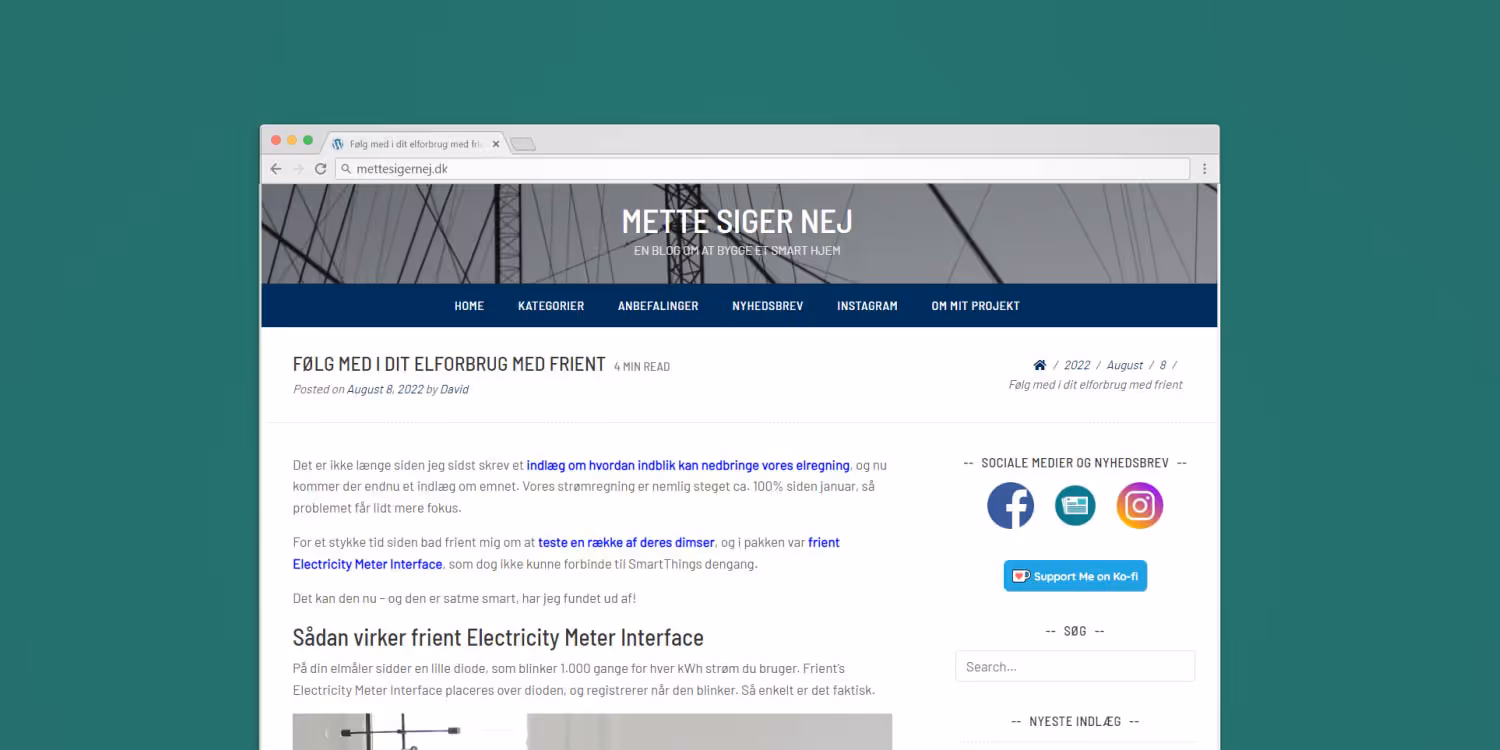

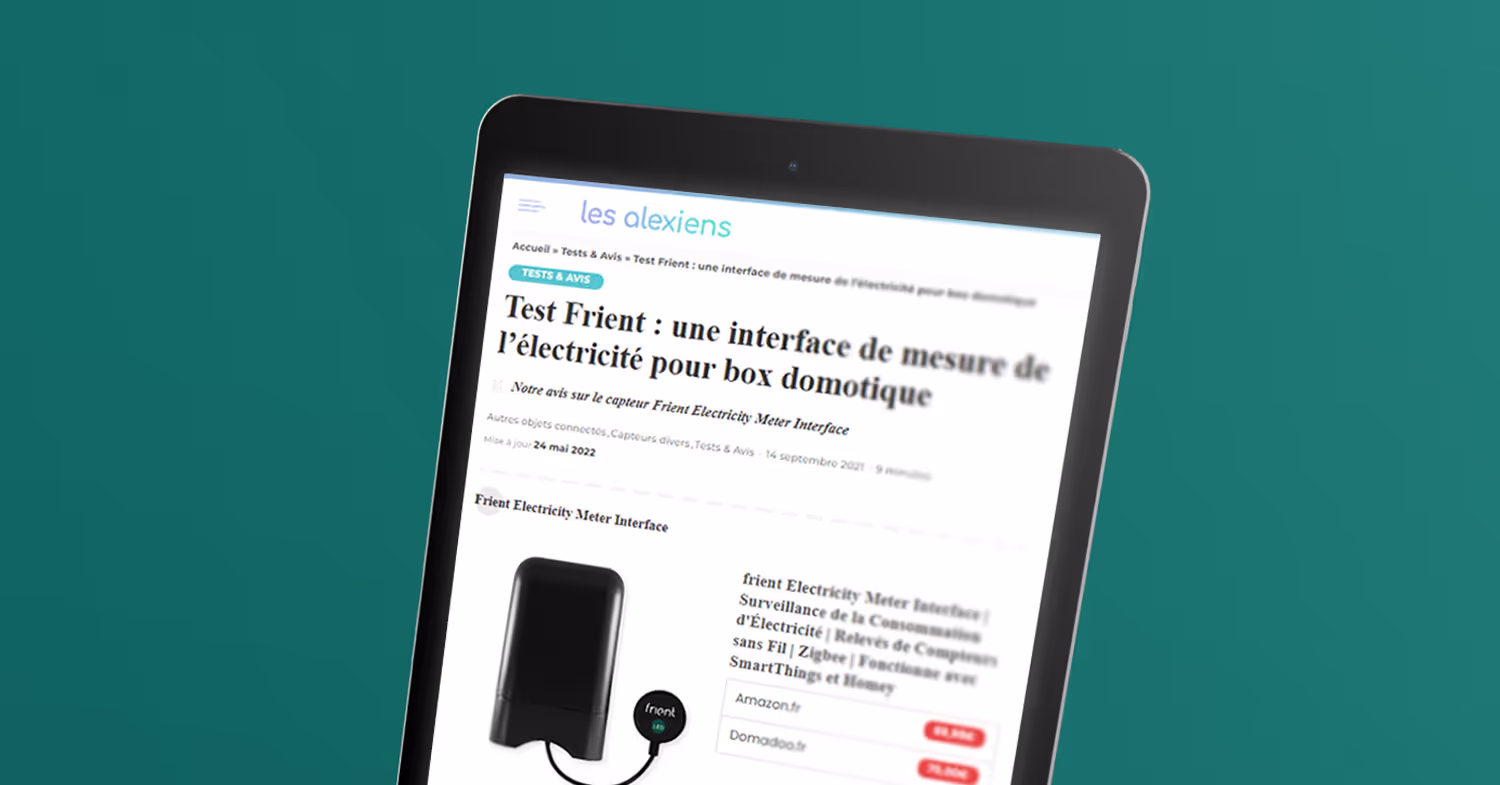

Reviews from friends of frient

See what other people have to say about this frient

A must-have
Highly recommend - only took a minute to install and provides great, up-to-date readings on current power consumption.
Accurate and easy to install and integrate
Zigbee pairing with Smartthings hub was seamless. There is a device handler ready to go. As this is a pulse-counting device, its almost as accurate as the smart-meter its connected to.
Extremely precise
Extremely precise, with no need to cut wires, it can be installed in an instant. It was sufficient to position the sensor on the led beach of the meter to immediately have an immediate reading of consumption.

Specifications

Please note: This frient is no longer being produced and the support period for firmware updates as ended.

Communication protocol: Zigbee
Battery: 3 x AA, exchangeable
Battery life: 2 years, updating every 5 seconds, at room temperature
IP class: IP22
Operation temperature -20 to +60°C
Color: Black
Dimensions: 115 x 35 x 70 mm

See all specifications

General

  • Dimensions: 115 x 35 x 70 mm
  • Colour: Black

Power supply

  • Battery: 3 x AA alkaline batteries, exchangeable
  • Battery life: 2 years, updating every 5 seconds, at room temperature

RF Performance

  • Sensitivity: -98 dBm
  • Output power: +8 dBm

Environment

  • Operation temperature: -20 to +60°C
  • IP class: IP22
  • Relative humidity 5% - 85%, non condensing

Specifications meter reading

  • By LED probe

Interfaces

  • Norwegian HAN Interface
  • Hardware: Based on EN 13757-2
  • Software: Based on IEC 62056-7-5

Communications

Wireless protocol

  • Zigbee Home Automation 1.2

Certifications

  • Conforming to CE, RoHS and REACH directives
  • Zigbee Home Automation 1.2 compliant
installation of smart meters
