Bring your wired devices online
IO Module
Imagine having a frient who helps you automate your home. Someone who is able to connect even your wired devices to your smart home system, so you don’t need to replace them with new smart versions. A frient who smartens up your home while protecting your money bag.
Now that’s a frient!
Make your wired appliances smart
The friently IO Module acts like a bridge between your analog, wired devices and your wireless smart home network, so you can make your analog devices work with your smart home.
It can be installed in different types of devices like blinds, garage doors, or heat pumps. Just connect your wired device to the output part of the IO Module to make them respond to events, such as making your electrical blinds go up or your garage door open.
This can be triggered, for example, directly on your smartphone or by another smart home device such as another frient – the IO Module is fully compatible with other Zigbee-based smart devices.
That's what frients are for
Making your wired appliances smart
Letting you control wired appliances remotely
Automating your home
Control wired devices remotely
With the IO Module connected to a wired device, you can easily control the device remotely with your smartphone. This allows you to remote control your electrical heat pump in your vacation house, for example, when you are not there.
The IO Module is also ideal for creating automations in your home, such as closing your electrical blinds when the sun is shining or opening your garage door when your car approaches.

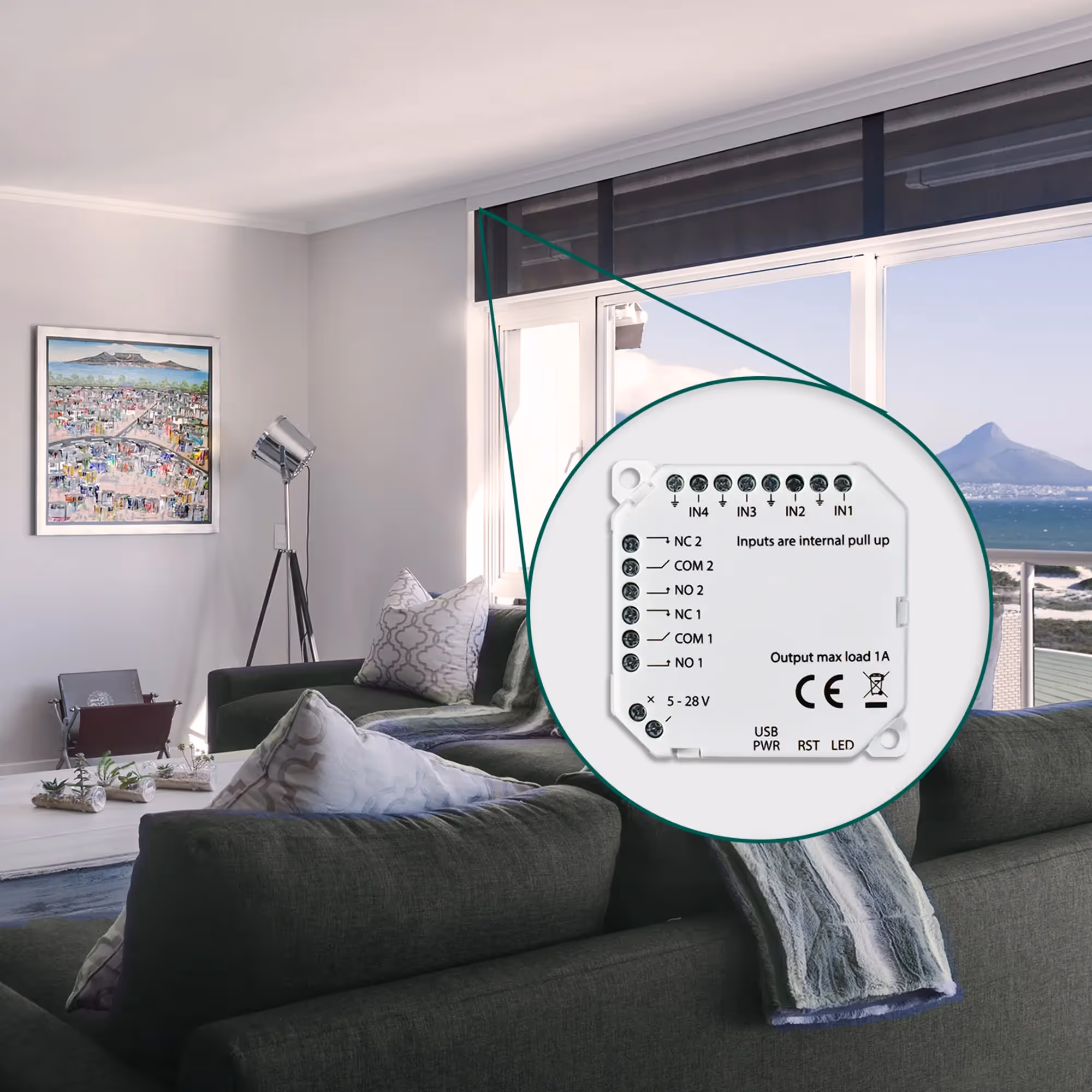

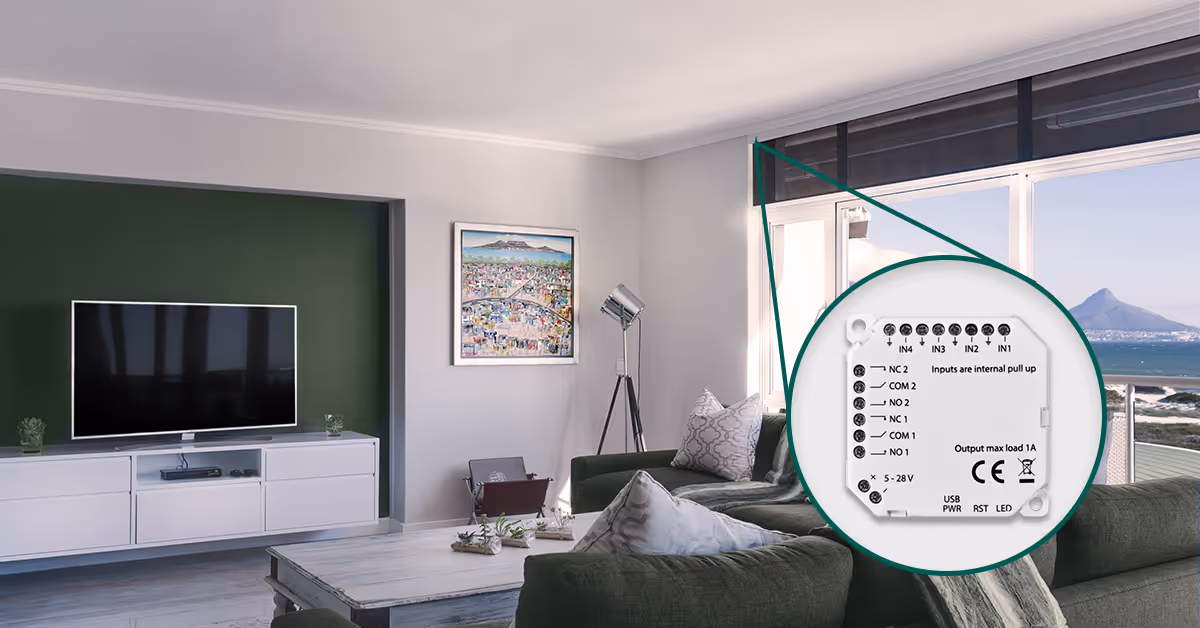

A small frient that fits in almost anywhere

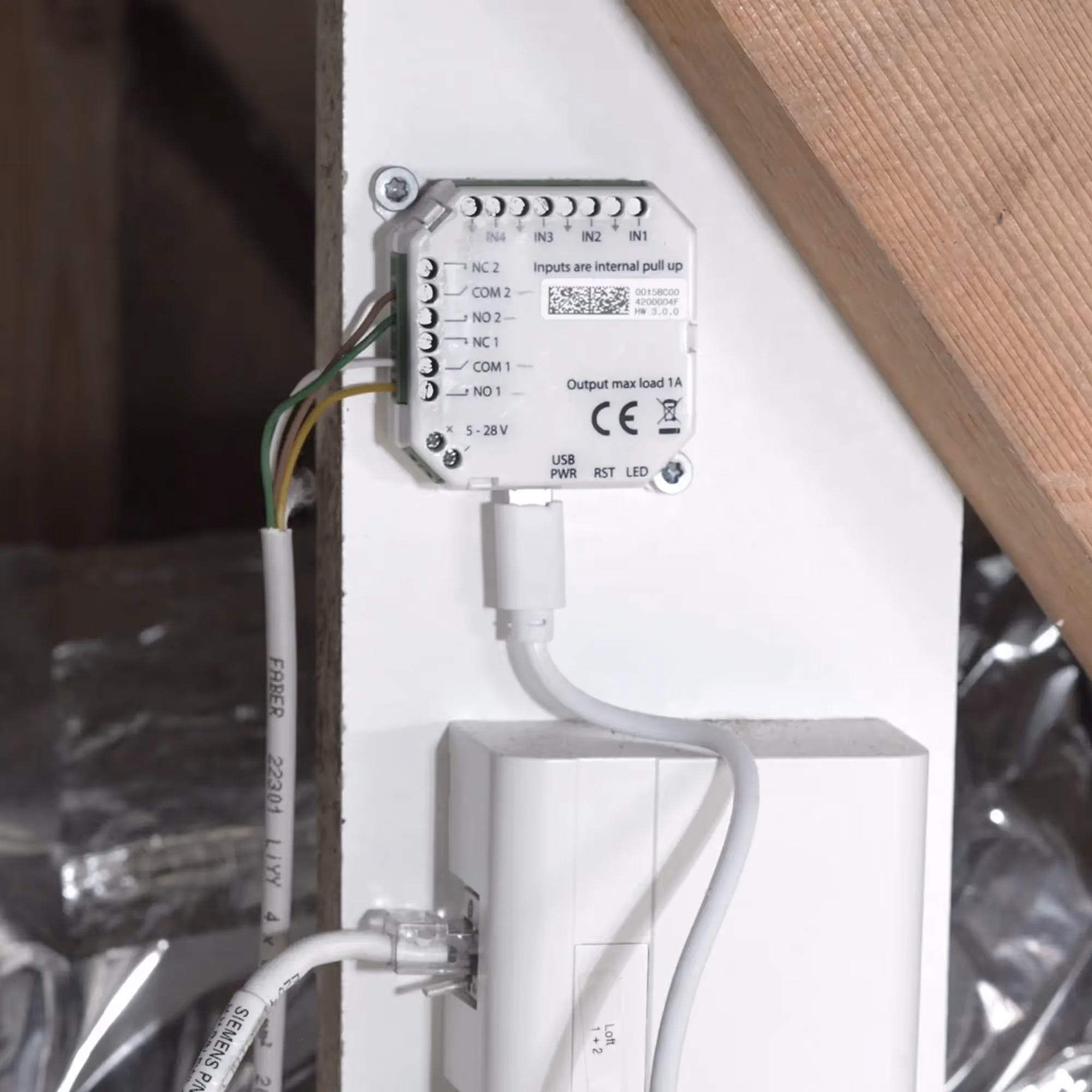

The IO Module has a convenient small size designed to fit into small spaces, for example inside a technical cabinet or behind an electricity outlet. This frient is meant to be hidden while it’s working its magic in the background.
Frients with...
*Not all features supported by all hubs.
** To make the IO Module work with SmartThings, you need to install SmartThings Edge drivers. You can download them here.
Specifications
Communication protocol: Zigbee
Power supply: 6 - 28VDC (alternatively uUSB - e.g. for power bank)
IP class: IP20
Operation temperature 0 to +50°C
Color: White
Dimensions: 45 x 16 x 45 mm
See all specifications
General
- Dimensions (W x D x H): 45 X 16 X 45 mm
- Weight: 24.8 g (with packaging: 41.5 g)
- Color: White
- Power supply: 6 - 28VDC (alternatively uUSB - e.g. for power bank)
- Power consumption: 0.3 W
Radio
- Sensitivity: -100 dBm
- Output power: 12 dBm
Environment
- IP class: IP20
- Operation temperature 0 to +50°C
- Relative humidity 5% - 95%, non-condensing
Functions
- Output:
- 2 pcs NO/NC - on/off or pulse
- Max switch voltage: 30V
- Max Switch Current: 1A
- Input:
- 4 pcs contact input (potential free switch or relay) NO/NC by SW
- Each input can be configured as an IAS alarm
Communication
- Wireless protocol:
- Zigbee 3.0
- Zigbee router
Certifications
- Conforming to CE, FCC, IC, ISED, RED, RoHS, and REACH directives
- Zigbee 3.0 certified
Get started with your new frient
Download the installation manual here.
